Product Overview
Brand: DMWD
Color: White
Features:

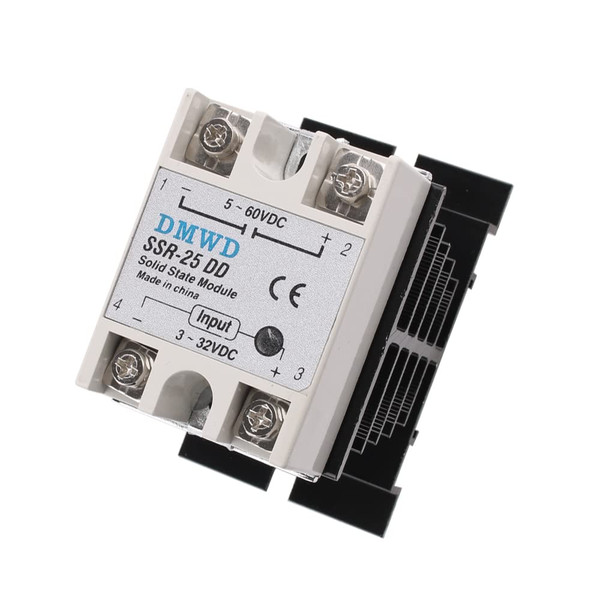

- Model: SSR-25DD, single phase Solid State Relay 25A DC to DC control, UL Approved, CE Compliant to EN60950-1
- Input voltage 3-32V DC, Load voltage 5-60V DC, Max load current 25 Amp
- Rugged epoxy encapsulation construction, high isolation over than 50MΩ(500VDC), high dielectric over than 2.5KV, output snubber circuit protection
- No EMI/EFI & Low surge by Zero Cross Trigger method, specially suited to control sensitive, capacitive and Non-saturated inductive loads
- SSR switches use semiconductor component acts as a switch for the relay, no moving parts inside, no mechanical wear, no action noise, no mechanical failure, and high reliability
Details: DMWD Low cost single phase solid state relay SSR-25DD Input voltage 3-32V DC Load voltage 5-60V DC Load current 25Amp 25A 3-32V DC to DC solid state relay (SSR) features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on. Built in RC absorption Photoelectric isolation SCR output LED indicator for operation status Panel mount Zero-crossing switch type UL Approved, CE Compliant to EN60950-1 Note: * When the load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them. * When the load current is 40A or more, a fan cooling radiator or water cooling radiator must be equipped. * Heat sink is included. Package Content: 1 x Solid State Relay 1 x All Aluminium Heat Sink Size/Weight: SSR(60x45x23mm/95g) Heat Sink(78*50*50mm/80g) Warranty: Free new replacement in 5 years, Have faith in quality
