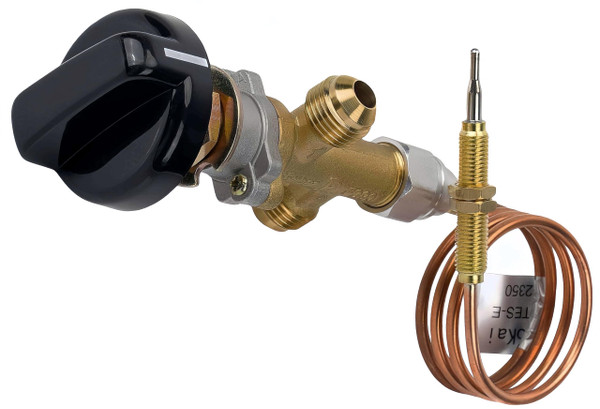

Product Overview
Brand: PAHQER
Color: coppery
Features:
- For Low Pressure Repair Control System For Grill, Fire Pits, Fireplace & Heater ,DIY Replacement Part
- Material: Safety Control Valve Kit Are Made High Quality Brass Material with Heavy-Duty Construction For Durable Use
- Size: Thermocouple Length: 600mm/23.62inch; Head Tip: M8; Knob Diameter 44mm; "D" Insert for Valve: 6.0-6.1mm(Low Working Pressure Max 1/2 PSI (65mbar), Main Control Valve In & Out with 3/8″ Male Flare thread (Max BTU rating: 50000).)
- Keep The Thermocoupler to be Heated and Push the Valve around 5-10s Then Release Hand (if Flame stops, Ajust the location of Thermocouple tip)
- Thread can be connected, Compatible Weber summit grill, Veranda Harmony Classic fire pit, Canyon Ridge Gas Fire Table, Canyon Ridge fire pit, BOND FIRE PITS, Hampton Bay Patio Heater, etc
Details: Thermocouple plays the role of a sensor, it senses the flame, will transmit a signal to the solenoid valve in the control valve, the solenoid valve receives the signal before opening the gas, in order to successfully ignite and keep the flame does not go out. So in the installation, the control valve and thermocouple should be well connected, so the control valve will receive the signal transmitted by the thermocouple, it will pass gas and ignite. 1:Fix the valve on a plate or board of your grill or fire pits by the head screw and flange. 2:Connect your inlet and outlet hose on inlet and outlet side. (faston it tightly enough in case of gas leakage). 3:Faston the thermocouple nut M*8 on the valve end tightly. 4:Connect thermocouple and end thread well. 5:Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough. 6:Release your hand and it work properly If when you release hand, gas valve shut off again, Please check. That it has a safety shut off. There is a thermocouple that senses the presence of a flame; if the flame blows out the valve cuts off the propane supply. Operation is straight forward: push the knob in, turn counterclockwise 90 degrees, give it a spark to ignite, keep the knob pushed in for a few seconds while the thermocouple heats up, then release the knob and adjust the flame. While the thermocouple is cold, no gas flows until you push in the knob. Great value on an excellent gas valve.
