Product Overview
Brand: Kework
Color: Black
Features:
- Keystone on lock module combination panel. Solder-free and screw-fast module installation.
- Standard American specification. Dimension:70mm x 115mm(L*H). Please note that the panel socket is not suitable for EU.
- The blank panel is fixed by screws, 2 screws are included.
- Free combination. The modules and blank panels can be freely combined. The combination of the main picture is not the only combination standard, buyers can freely DIY according to their own preferences.
- HDMI 4K Adapter Modules. HD Quality Output. 4K HDMI Supports refresh rate up to 4K@60H and resolution up to 3840×2160. Supports 8.29 million PX, 50/60FPS, 32 audio channel and the MAX 1536khz.
- The 4K HDMI can expand the bandwidth up to 32Gbps. Your large-screen cinema quality and sound quality can be output freely. If the HDMI2.0 wants to realize 3840 x 2160P, and 60HZ transmission. You need to make sure that your cable/TV/other equipment/graphics card support HDMI 2.0 Version. For example, if your device (TV) is HDMI1.4 version, the transmission resolution can only be up to 4K 30HZ.
- The 2.0 Version HDMI backward compatible with HDMI version 1.4 /1.2. Caution. It is backward compatible with HDMI lower version devices, cannot output all the features of version 2.0, and neither has 4k picture quality
- USB 3.0 Socket Module. 5Gbps and 3A data output and current output. Backward compatible with USB 2.0.

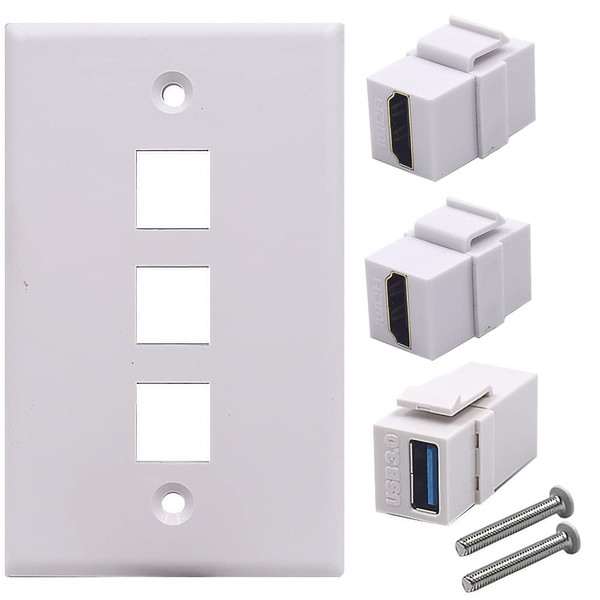

- Package List: 1x blank panel, 2x screws, 2x HDM module, 1xUSB 3.0 module
Details: Parameter Description Connector Gender:Female to Female Plug Type: HDMI Version: HDMI 2.0 Bandwidth: Up to 32Gbps Audio Return Channel: 32 Resolution: 3840×2160 Pixel: 8.29 million Frame Element: 50/60FPS HD: 4K HZ: 60HZ Plug Type: RJ45 Version: CAT6 Package List: 1xBlank panel, 3xModules, 2xScrews
