Product Overview
Brand: HiLetgo
Features:

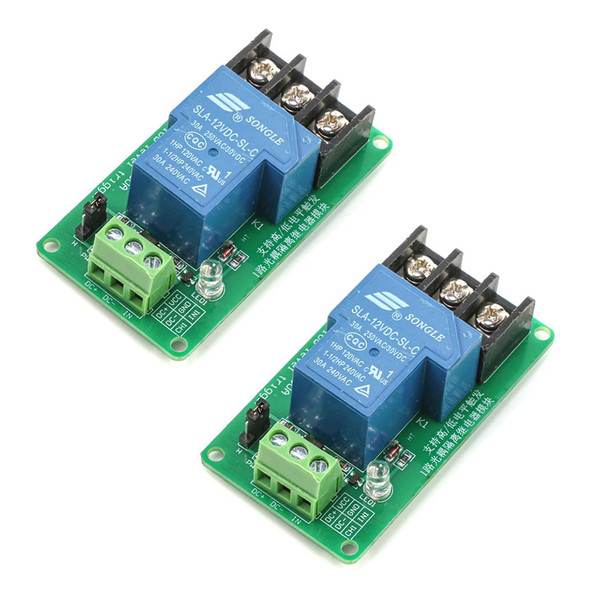

- 5V 12V 24V 30A One Channel Relay Module Optocoupler Isolation High and Low Trigger
- With optocoupler isolation, strong drive capability, stable performance; trigger current 5mA.
- Friendly interface design, all interfaces can be directly connected through the terminal leads, very convenient.
Details: Description: 1. This relay module uses high quality 30A relay, normally open interface maximum load: AC 250V/30A, DC30V/30A. 2. It use optocoupler isolation, strong drive capability, stable performance; trigger current 5mA. 3. Voltage: 5V, 12V, 24V optional 4. Use the jumper wire to set high or low trigger 5. Friendly interface design, all interfaces can be directly connected through the terminal leads, very convenient. Parameters: Relay voltage: 5V Quiescent current: 5mA Maximum current: 190mA Trigger current: 2-4mA Relay voltage: 12V Quiescent current: 5mA Maximum current: 80mA Trigger current: 2-4mA Relay voltage: 24V Quiescent current: 5mA Maximum current: 50mA Trigger current: 2-4mA Wiring: 1.DC +: DC power supply positive (trigger terminal voltage positive) 2.DC-: DC power supply negative (trigger terminal voltage negative) 3.IN: Signal trigger terminal (the default trigger voltage and power supply the same) 4. High/Low level trigger mode selection, as shown, jumper and L-side connection, IN-side low-level trigger, connected with the H-side high trigger 5. NC (NC): Normally closed 6. Common (COM): Common 7. NO(NO): Normally open Package included: 2 x 30A One Channel Relay Module(5V 12V 24V Optional) (Note: Pack of two, it means you will get two SAME, not mixed types)
