Product Overview
Brand: BOJACK
Features:

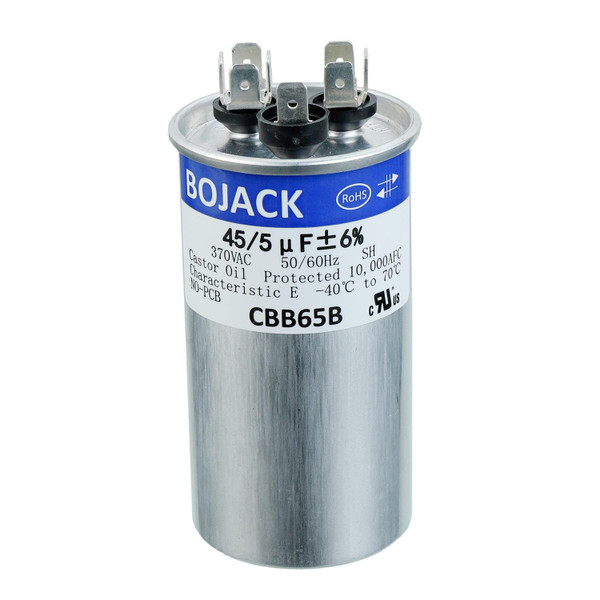

- BOJACK 45+5uF ±6% 370V CBB65 Dual run circular start capacitor
- Capacitor dimension: Diameter(50 mm/1.97 inch) Height(95 mm/3.74 inch)
- Operating temperature: -40 ℃ to +70℃，Safety rated: 10,000 AFC
- Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
- Replacement for 97F9895, Z97F995, 97F9895BZ3, 27L880
Details: BOJACK Dual run circular start capacitor Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor Model: CBB65（Universal model） Shell material: metal Dielectric Material: metallized polypropylene film Capacity: 45+5uf Tolerance: ±6% Rated voltage: 370V AC Frequency: 50 / 60Hz Safety rated: 10,000 AFC Capacitor dimension: Diameter(50 mm/1.97 inch) Height(95 mm/3.74 inch) Operating temperature: -40 ℃ to +70℃ This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors. It is small in size, lightweight, heat resisting and anti-explosion.
