Product Overview
Brand: Casalytics
Features:

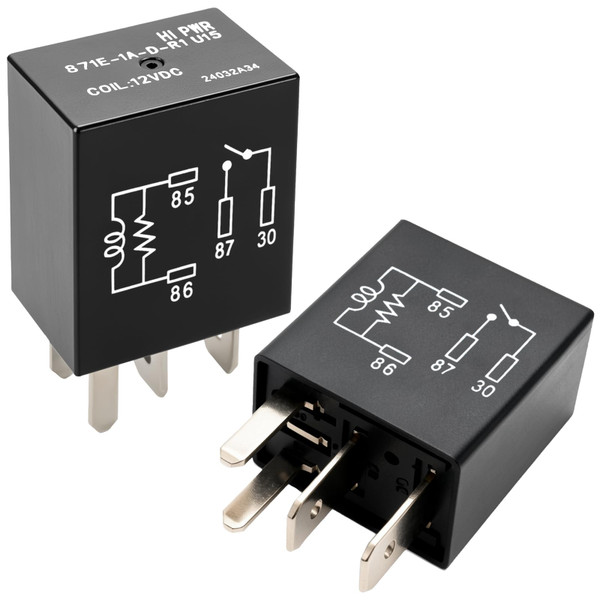

- 871E-1A-D-R1 U15 relay is made from high-quality materials to ensure durability and reliability, so you can trust it to perform in even the most demanding applications.
- With a coil voltage of 12 volts and a contact current rating of 35 amps, the relay remains stable in high-intensity environments.
- This relay is designed as a direct replacement for the original part, so you can be sure that it will fit and function perfectly in your specific application.
- The mini-universal design of the 871E-1A-D-R1 U15 relay makes it easy to install in most automotive systems. Whether you are an experienced worker or a novice, the installation is easy.
- 871E-1A-D-R1 U15 12VDC relay is widely used in automotive air conditioning oil pump.
Details: Nominal Coil Voltage: 12 VDC Contact Form:SPNO Terminal style:Socket terminal Resistive load：35A Contact material: AgSnO alloy Operate time : 10ms Max. Release time : 10msMax. Insulation resistance: 20MΩ Min. (DC 500V) Operating ambient temperature:-40~ +125°C (no freezing) Weight: Approx.20 g Package Content: 2x871E-1A-D-R1 U15 12VDC Attention: Do not use relays that exceedcoil ratings, contact ratings, and life expectancy, as doing so may result inRisk of overheating.
