Product Overview
Brand: ReleyWell
Features:

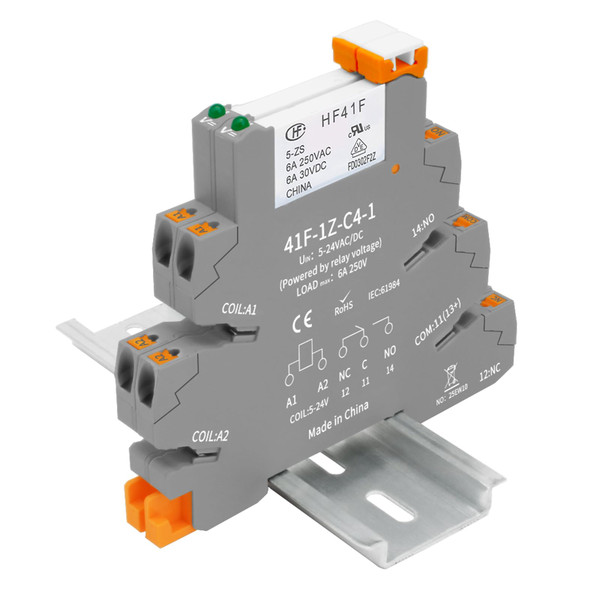

- Relay: 41F-1Z-C4-1
- Power: Input 5V; Maximum load 6A/250VAC or 6A/30VDC
- Benefits: At only 0.19 inches thick, the modular relay is easy to replace
- Indicator lights: visualize operating status for easy wiring observation
- Applications: Industrial automation controls, household appliances
Details: Description of the product Contract terms: 1H, 1Z Contact resistance: Gold-plated contacts: 30 square meters (1A6VDC) Non-Golden Contacts: 30 square meters (1A6VDC) Contact material: AGSNOZ, Agni Contact scabili (residual load): 6A-250VAC/6A-30VDC Maximum switching voltage: 400VAC/125VDC Maximum switching current: 6a Maximum switching power: 1500VA/180W Mechanical resistance: 1x10'volte Resistance: type H: 6x10” Times (Agni, 6A250VAC/30VDC resistor load, 85C, 1s On and 9s Off) type Z: 3x10' volte (Noagni, 6A250VAC/30VDC resistor load at 85C, 1s On and 9s Off) 1x10'times (Noagni, 6A250VAC/30VDCRESISTIVELOOD, 85c, 1s ON and 9s OFF) Insulation resistance: 1000mΩ (at 500VDC) Dielectric stiffness: Between coil and contact: 4000VAC1min In open contacts: 1000Vaclmin Operation time (Volt name): <8ms Release time (nominal volts): <4ms Shock resistance: Functionality: 49m/s Destructive: 980m/s Flutter resistance: 10-55HZLMMDPIA amplitude Humidity: 5%-85% RH Ambient Temperature: -40C~+85C Termination: PCB print card Unit weight: ~5G Construction: Sealed plastic, flow proof
